Tektro HD-E500 Auriga E-Comp E-Bike Hydraulic Disc Brake Set - Front/Rear 203mm

Tektro HD-E500 Auriga E-Comp Hydraulic Disc Brake System for E-Bikes

Technical Specifications:
▪ Sensor-Controlled Hydraulic System - Smart modulation for electric bike applications
▪ Dual-Piston Open Design - 2×Ø15mm pistons with heat-dissipating technology
▪ Premium Aluminum Construction

Forged aluminum lever (Type-2.5 finger blade)

CNC-machined caliper bracket

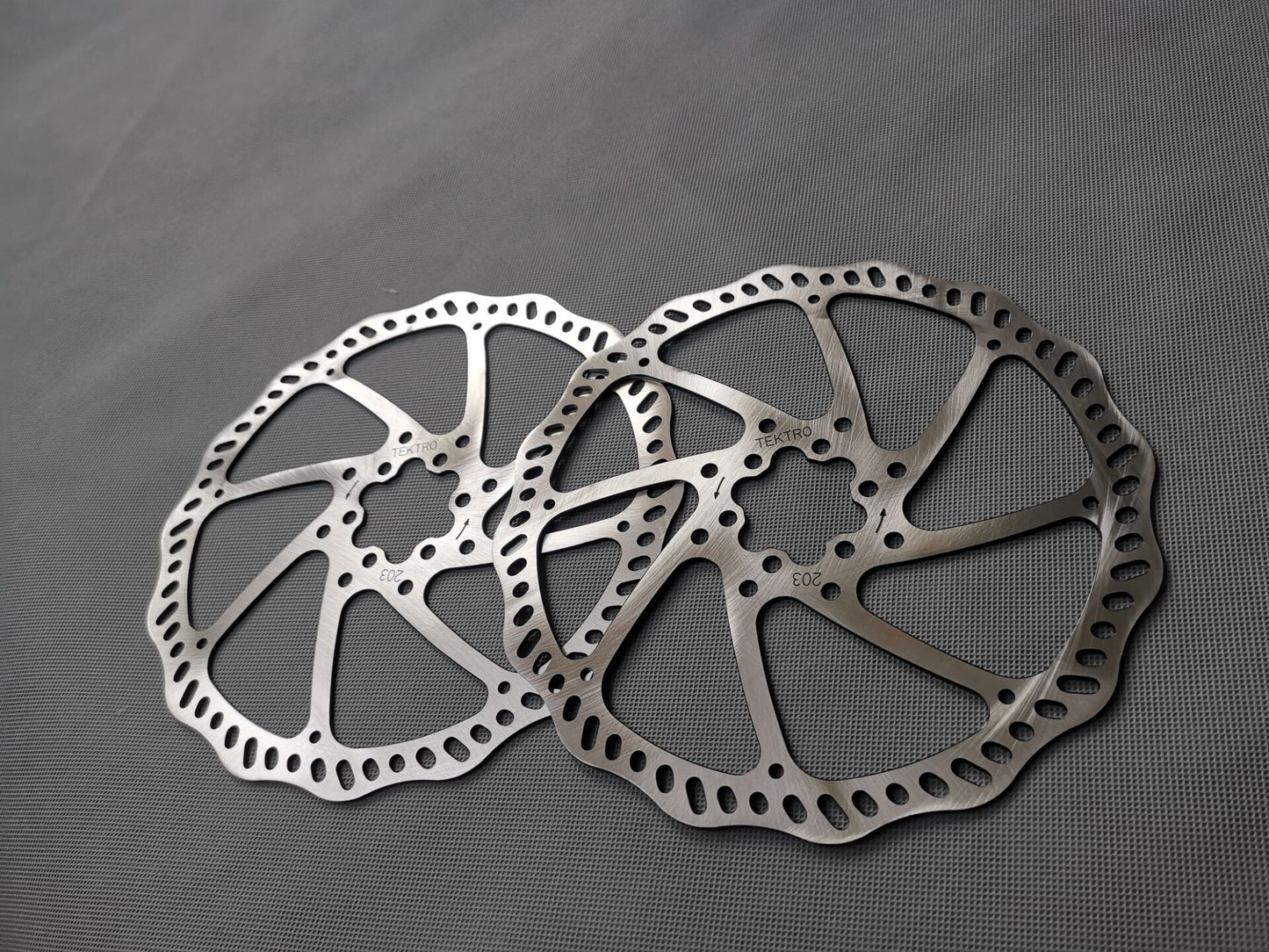

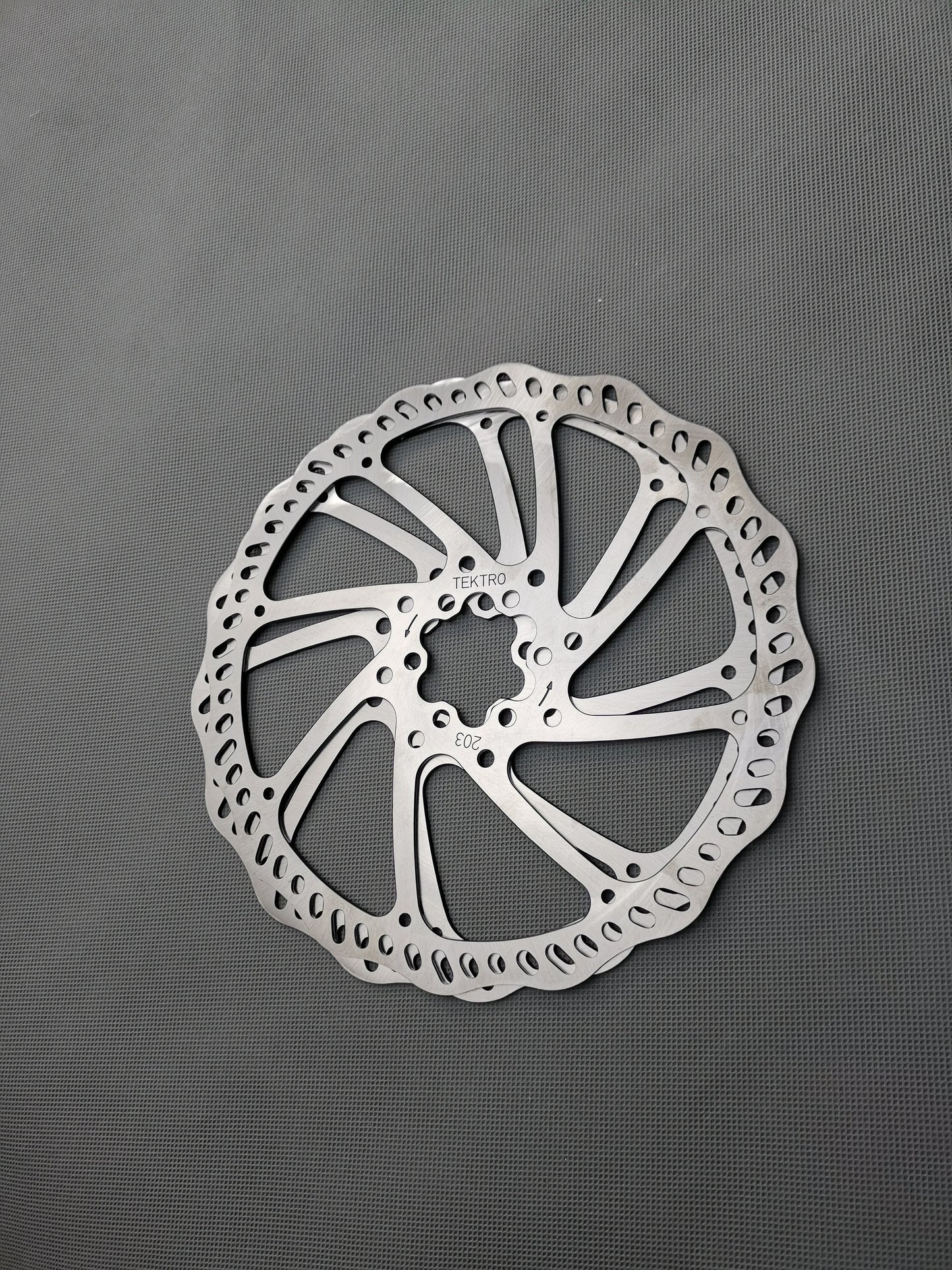

▪ Oversized 203mm Rotors (TR160-7 six-bolt pattern) - Front & rear compatible
▪ Tool-Free Reach Adjustment - 10mm range for personalized control

Key Features:
✓ E-Bike Optimized - Integrated motor cutoff sensor (connector included)
✓ Maintenance-Friendly - Bleed port with screw-in reservoir cap
✓ Weather Resistant - Mineral oil formula (-20°C to 80°C operating range)

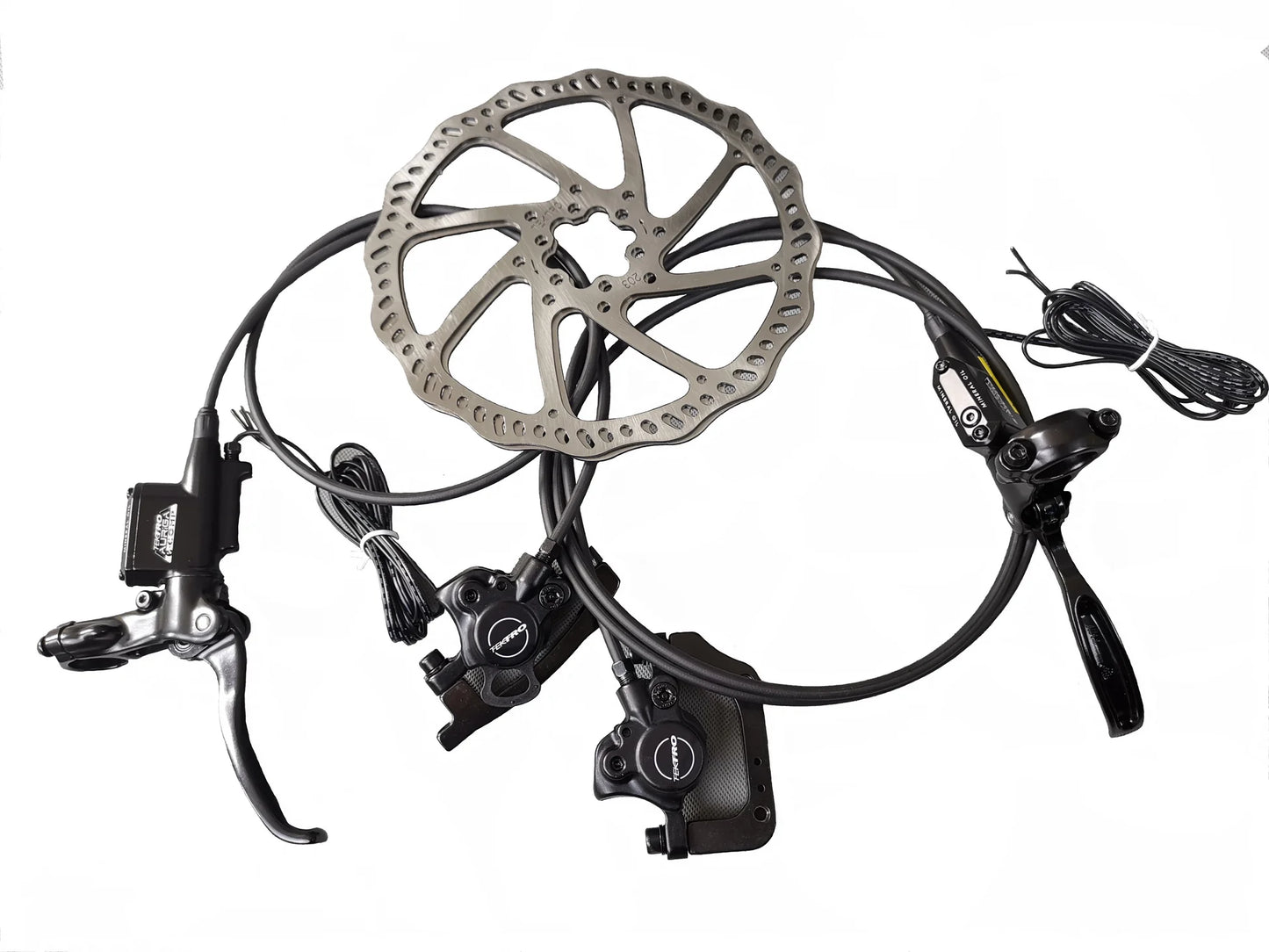

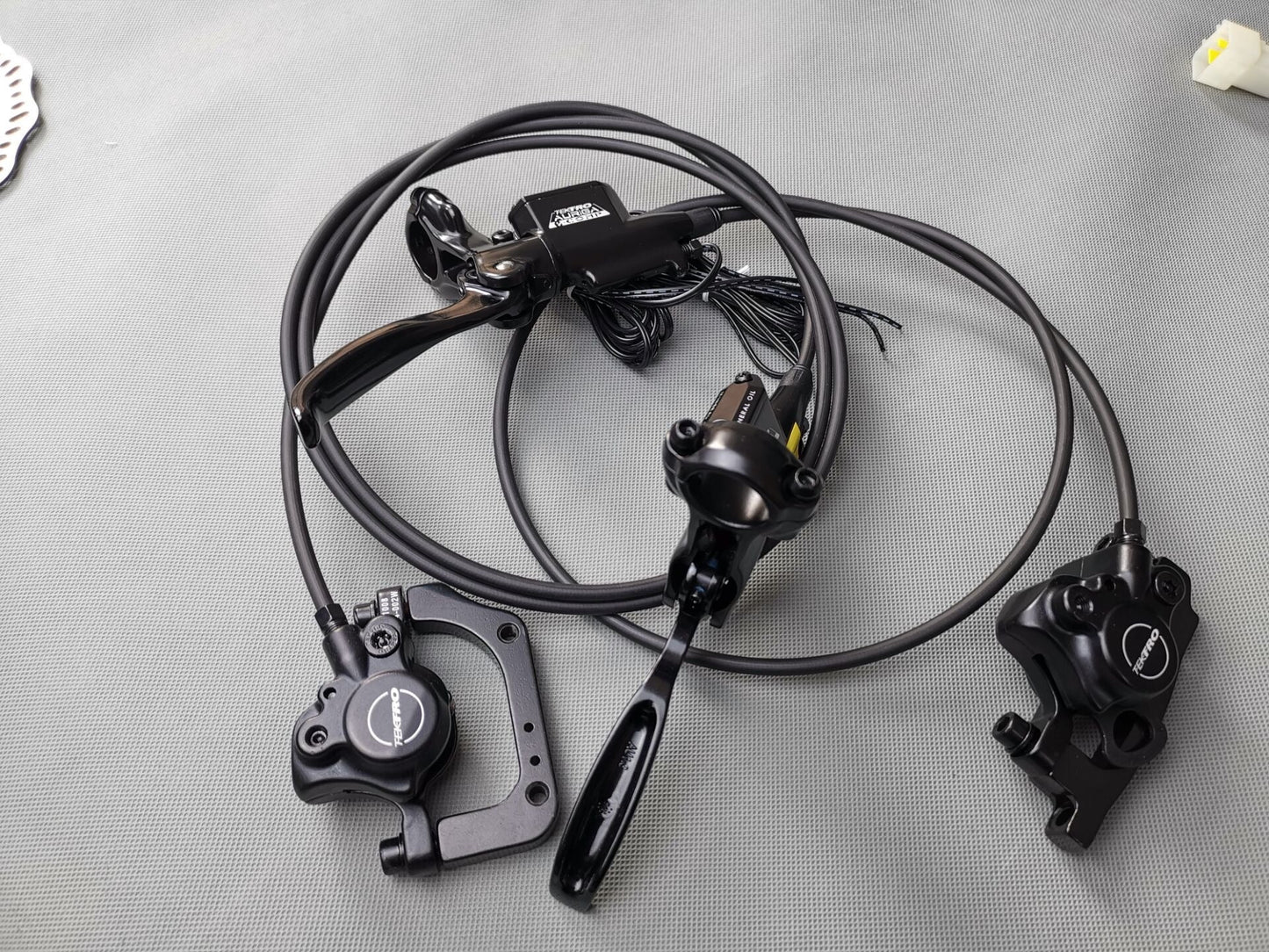

✓ Complete Kit Includes:

Front & rear brake assemblies

203mm rotors (pair)

Sensor wiring harness

Mounting hardware (IS/PM adapters)

Installation Note:
Designed for 160-203mm rotor configurations. Requires professional bleeding when first installed. Compatible with most e-bike torque sensor systems.

(Patent-pending Auriga heat management system reduces fade during sustained braking)

*Weight: 890g (front+rear set) | Certification: ISO 4210-2, EN 14766*

Available in:

Standard version (shown)

Pro version with finned pads (+€29)
Select front/rear configuration during checkout. Installation manual downloadable via QR code on packaging.
