Electric Bicycle PAS Pedal Assist Sensor KT senssors

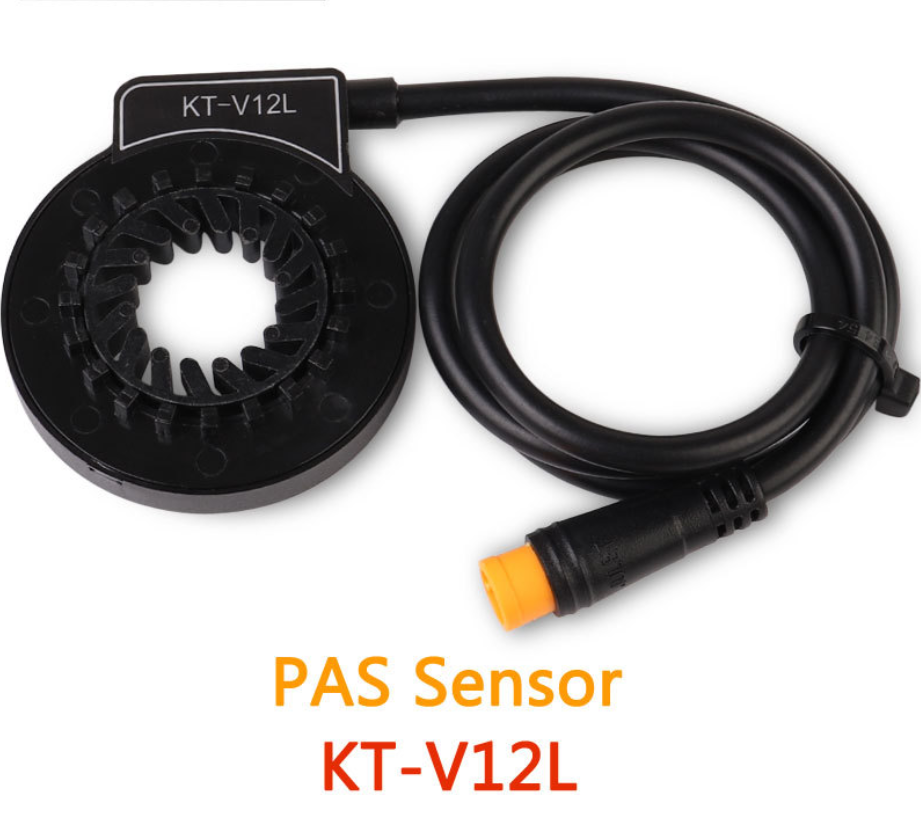

Different connectors: Model A is equipped with waterproof connectors, while Model B uses standard connectors.

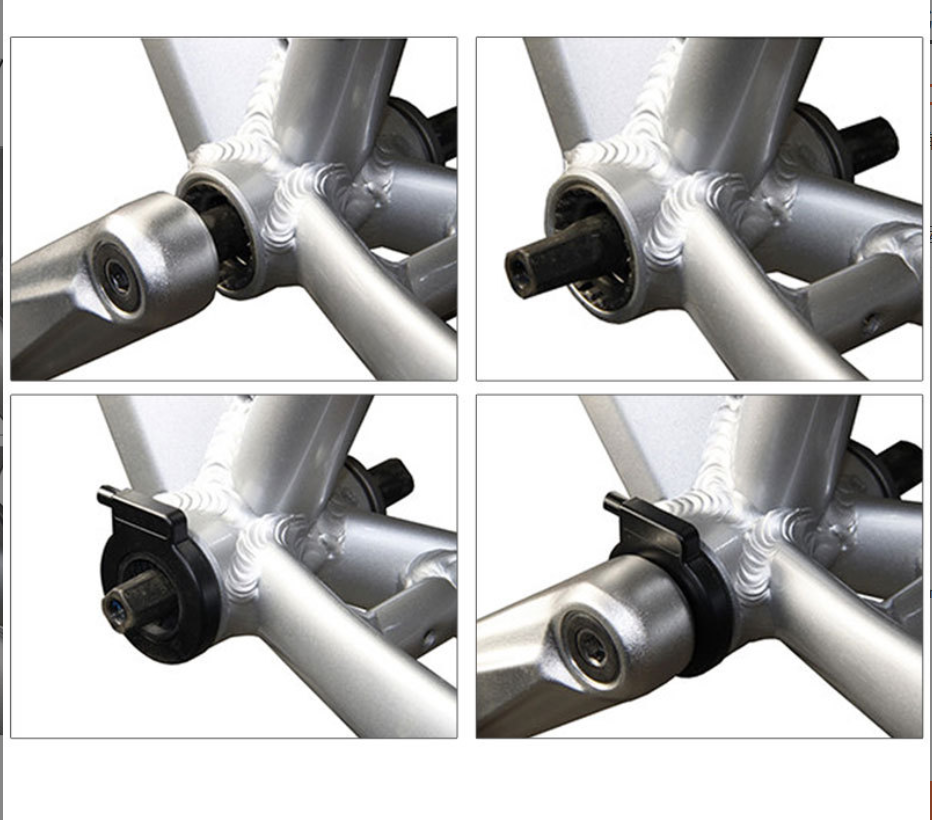

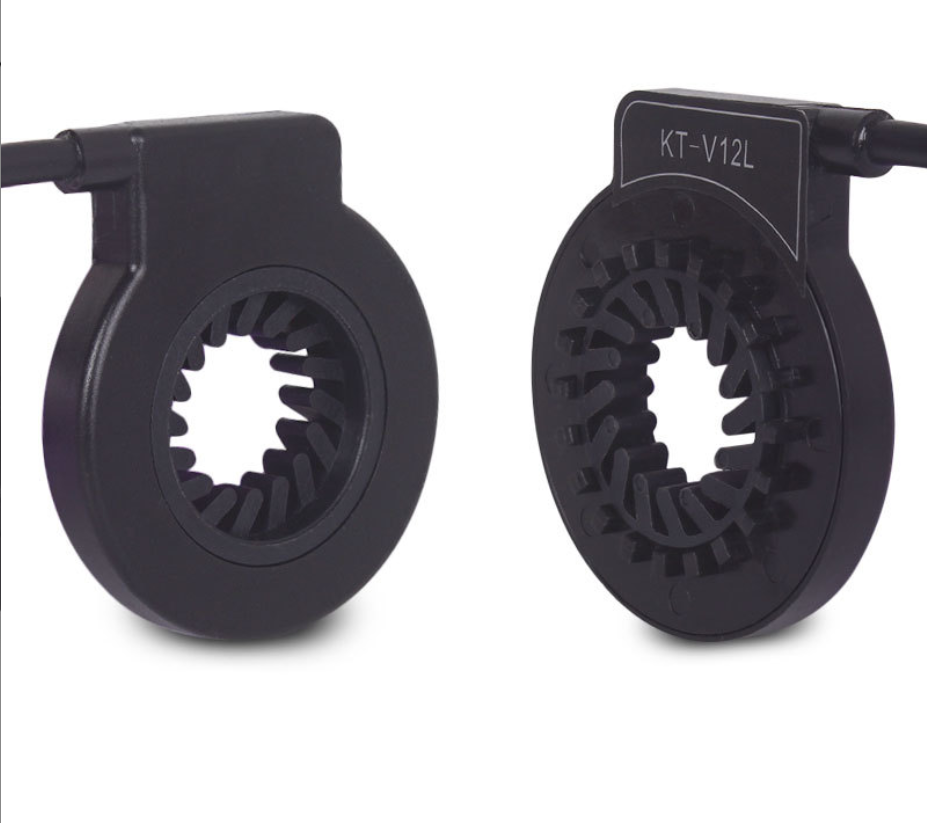

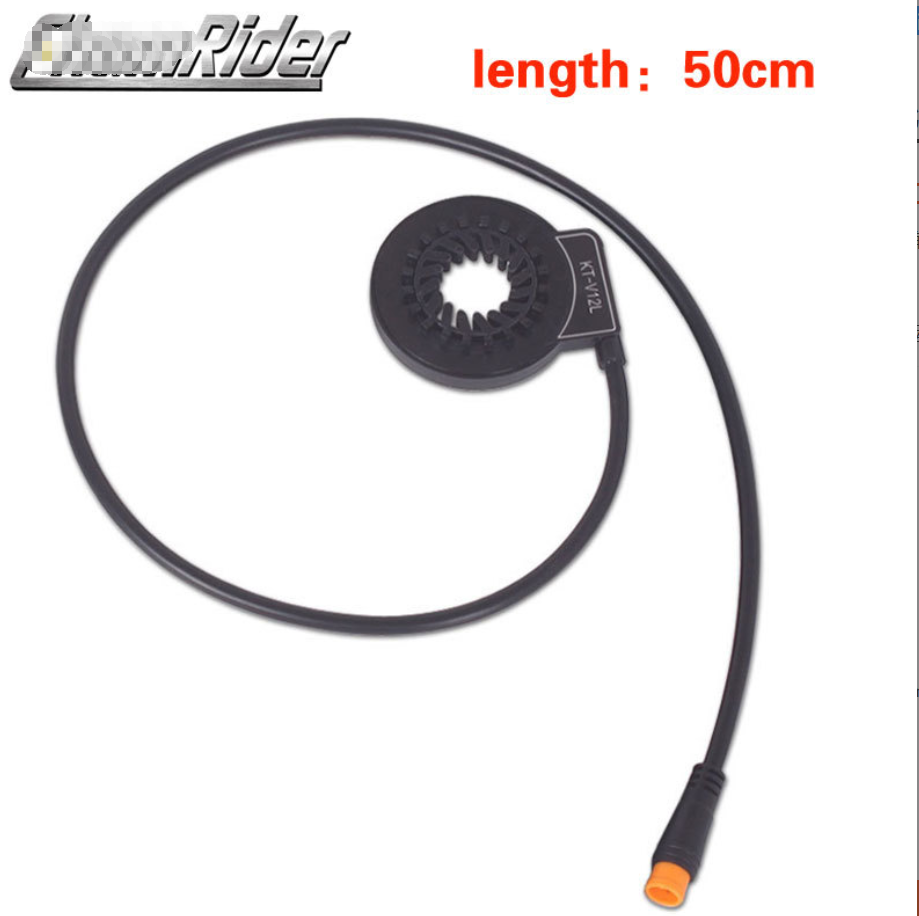

KT-V12L Dual Hall assist sensor uses the left installation mode, during the installation, it’s simply needed to remove the left crank, and install the sensor in an electric bicycle axis according to the diagram, then install the crank back into place to complete the sensor installation.

KT-D12 power-assistant sensor is with the characteristics of 12 signal outputs, fast power response, good accuracy, strong water resistance,high reliability, etc. Its installation and removal is quick and easy. Sensor is divided into two models of left installation and right installation, which can be installed in different locations to adapt to a variety of vehicle models.

Magnet plate assembly should plug the two pieces of magnetic steel plate

according to the following diagram, which is then fixed by using a circlip.
