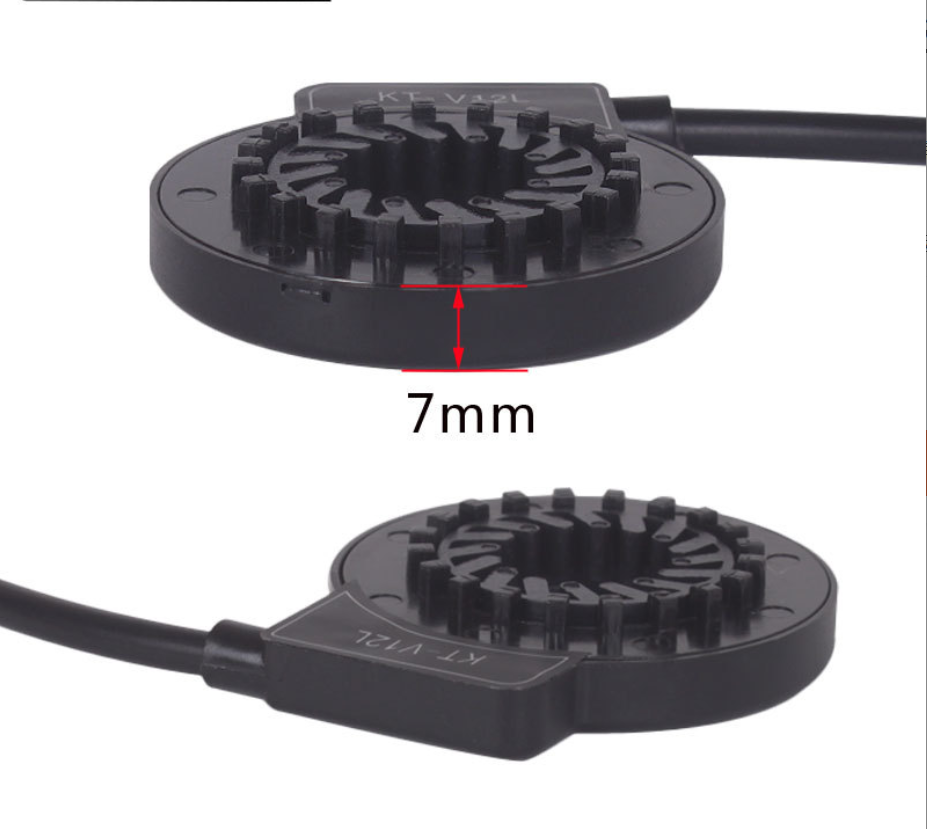

Ebike Pedal Assist PAS Sensor KT-V12L Magnet Easy To Install

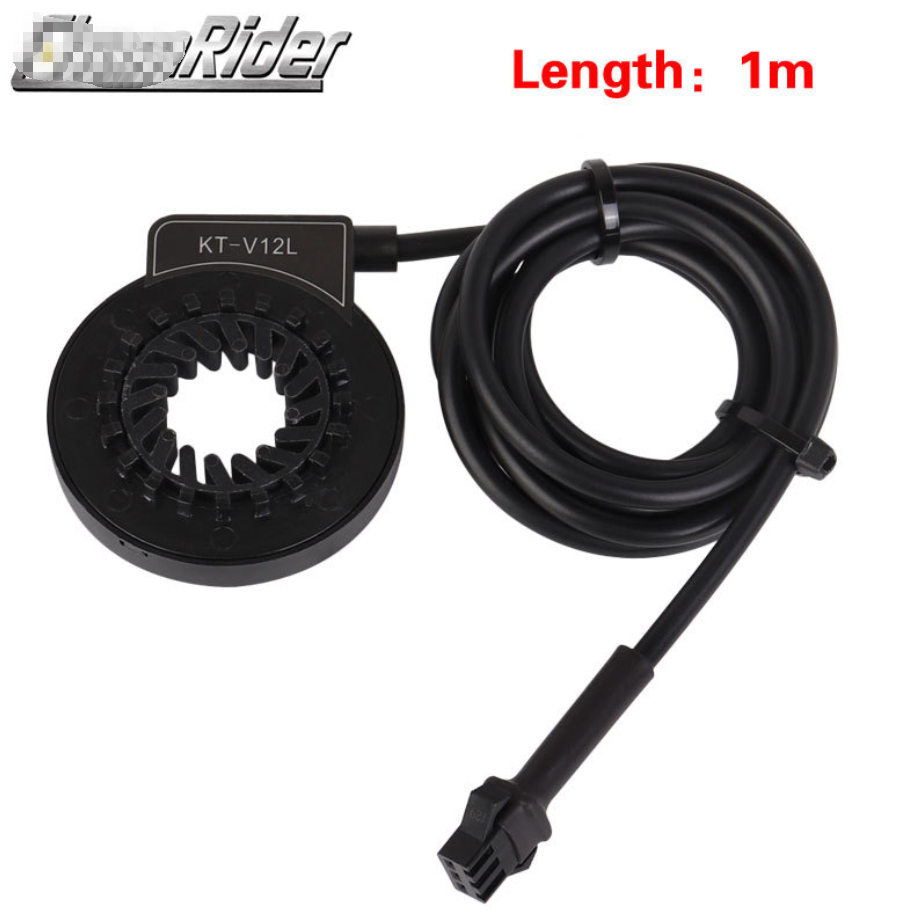

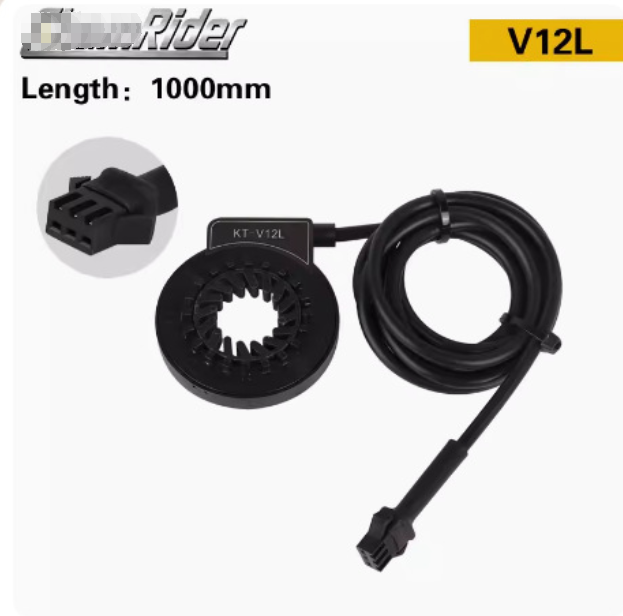

Length：1m

Functions and features:

2.Compared with the traditional separation sensor, it can realize the concentric motion of disk

and magnetic induction element, which is with high sensitivity and stable signal;

3.Output 12 signals with fast power-assist response speed, and it can automatically

identify the positive rotation and the reverse rotation of the pedal;

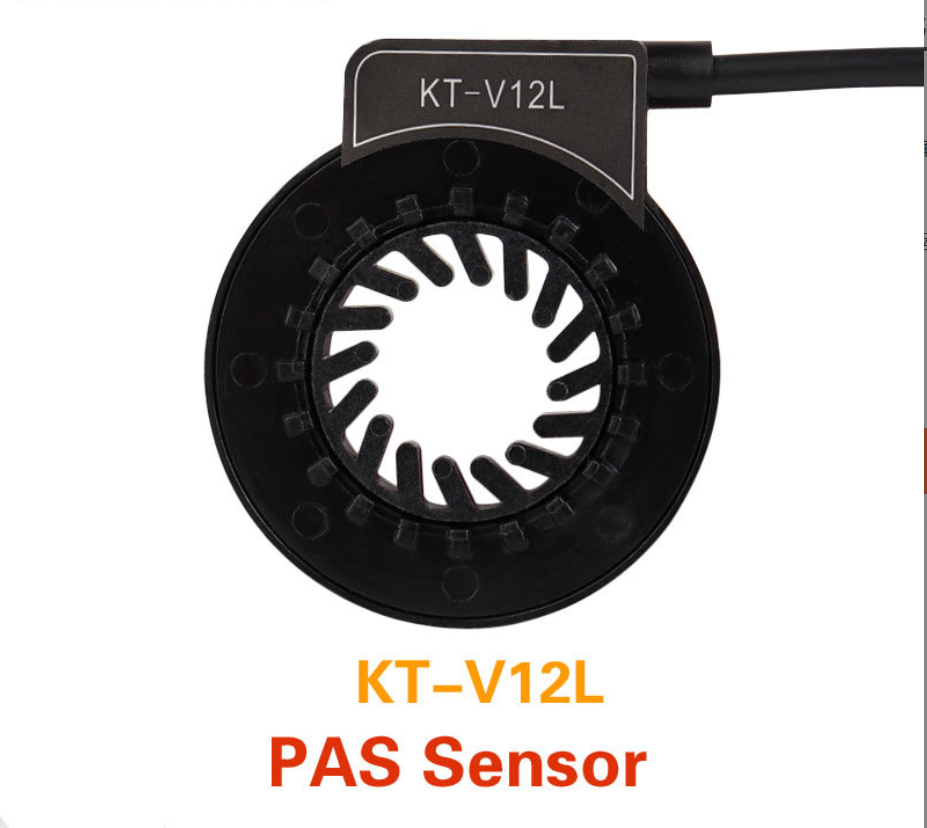

Specifications: left KT-V12L

Form of sensor:

Shell color and materials: black PC

Lead way: three-wire system

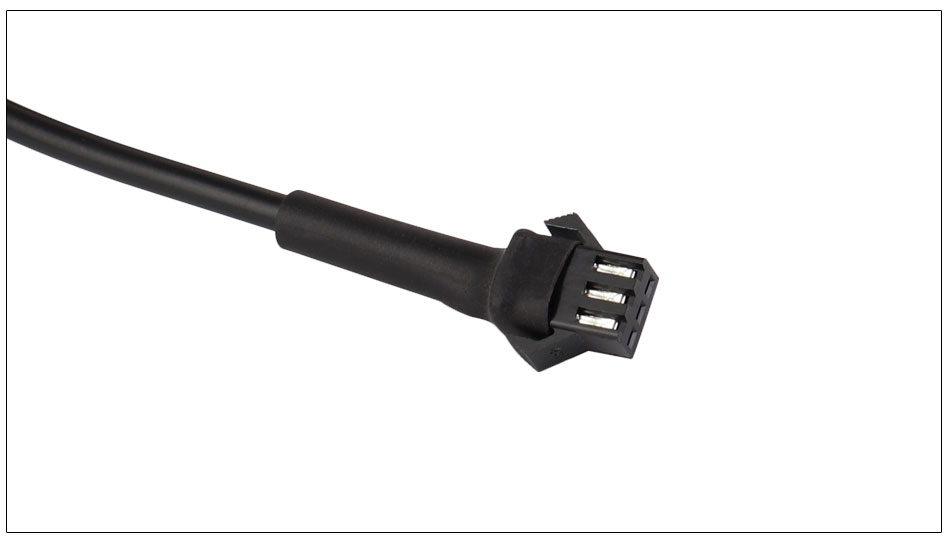

Standard interface: SM-3A

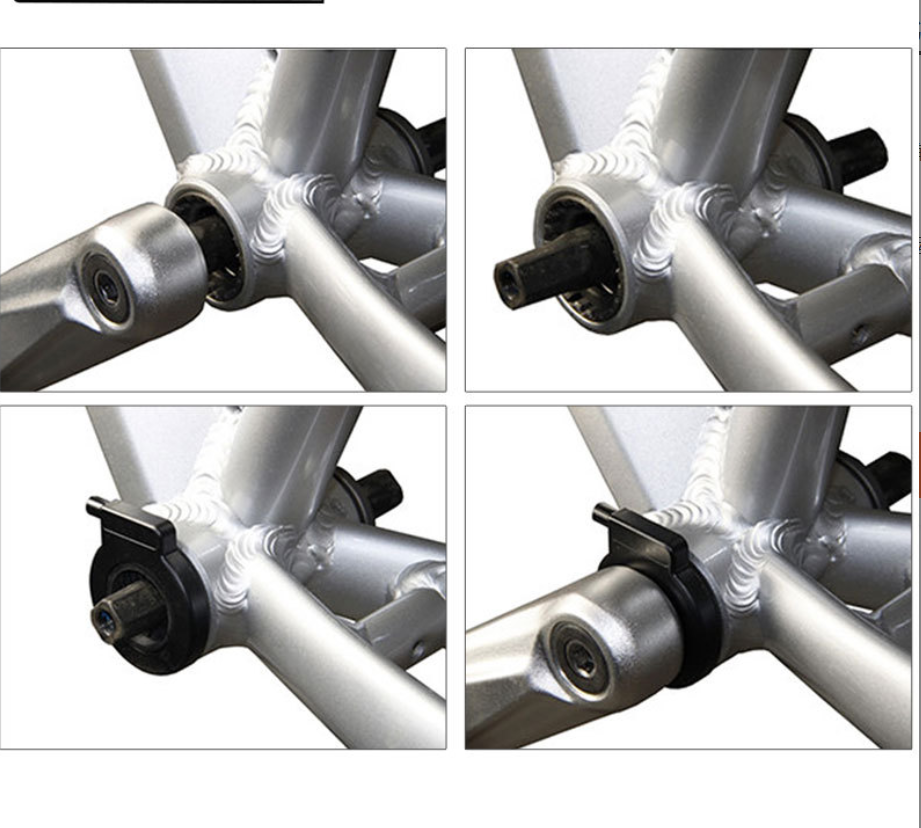

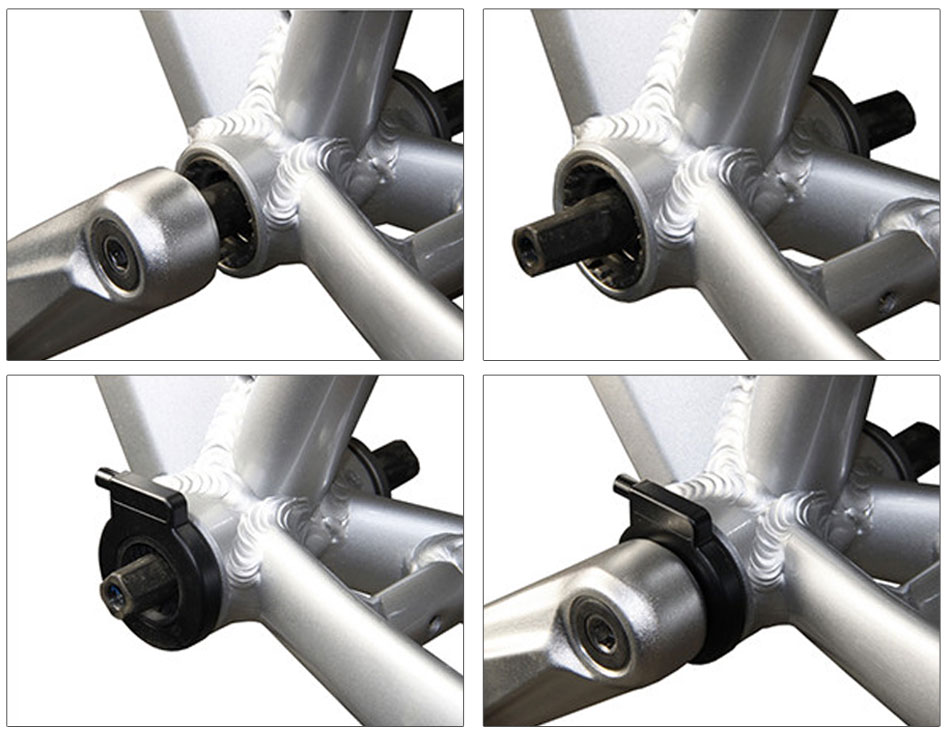

Diagram of left-mounted position:

KT-V12L Dual Hall assist sensor uses the left installation mode, during the installation,

it’s simply needed to remove the left crank, and install the sensor in an electric bicycle

axis according to the diagram, then install the crank back into place to complete

the sensor installation.
