36V250W 48V350W Controller kit LCD5 Display Meter PAS

$169.00 USD

Sale Sold out

Option 36V BZ-4 48V BZ-4 36V V12L 48V V12L 36V BZ-10C 48V BZ-10C 36V D12L 48V D12L

Quantity

High quality 5 levels of pedal assist system:

Including following parts:

1 x 36V/48V controller
1 x 36V/48V LCD dispay
1 x PAS

Function of LCD dispay:

1. Battery indicator;
2. Trip time / Total trip time
3. 5 levels of PAS;
4. Current speed / Average speed / Max Speed/
5. Trip distance / Mileage /
6. 6km/h assistant power mode

Other Powerful Pratical Functionality:

1.PAS Level switch;
2.Electric system error indicator;
3.Controller maximum current limitation;
4.Controller minnimum voltage adjustment;
5.PAS output power adjustment;

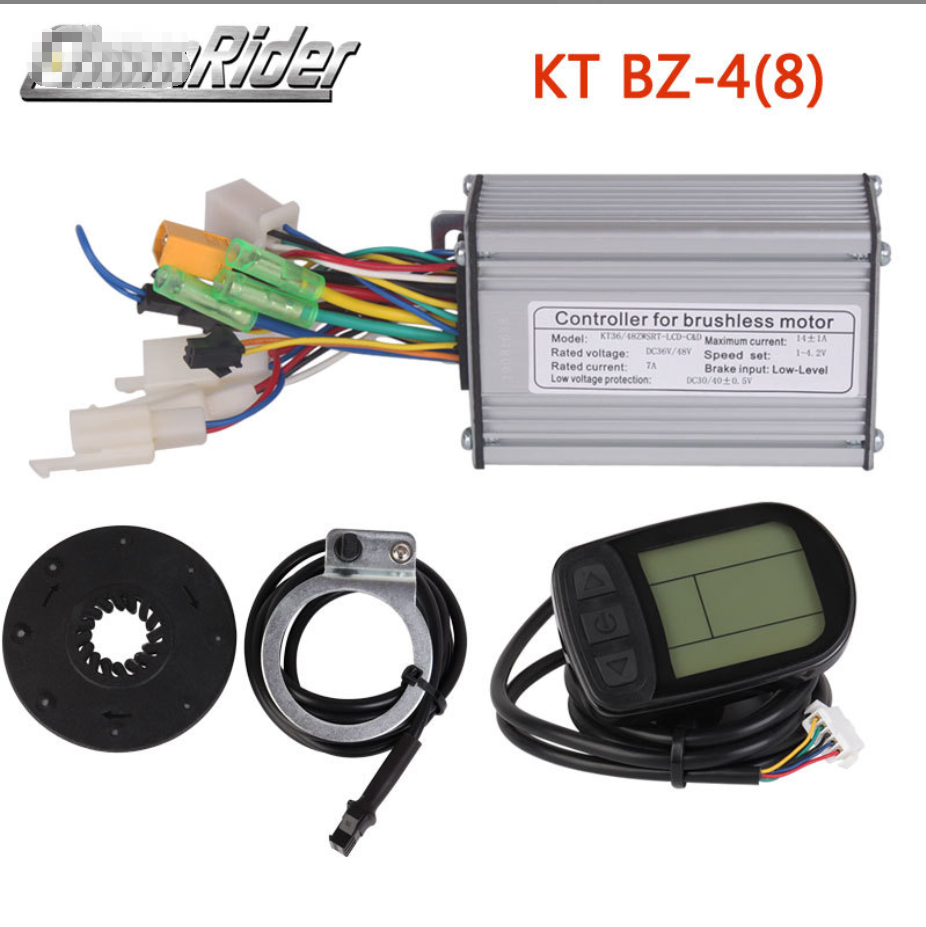

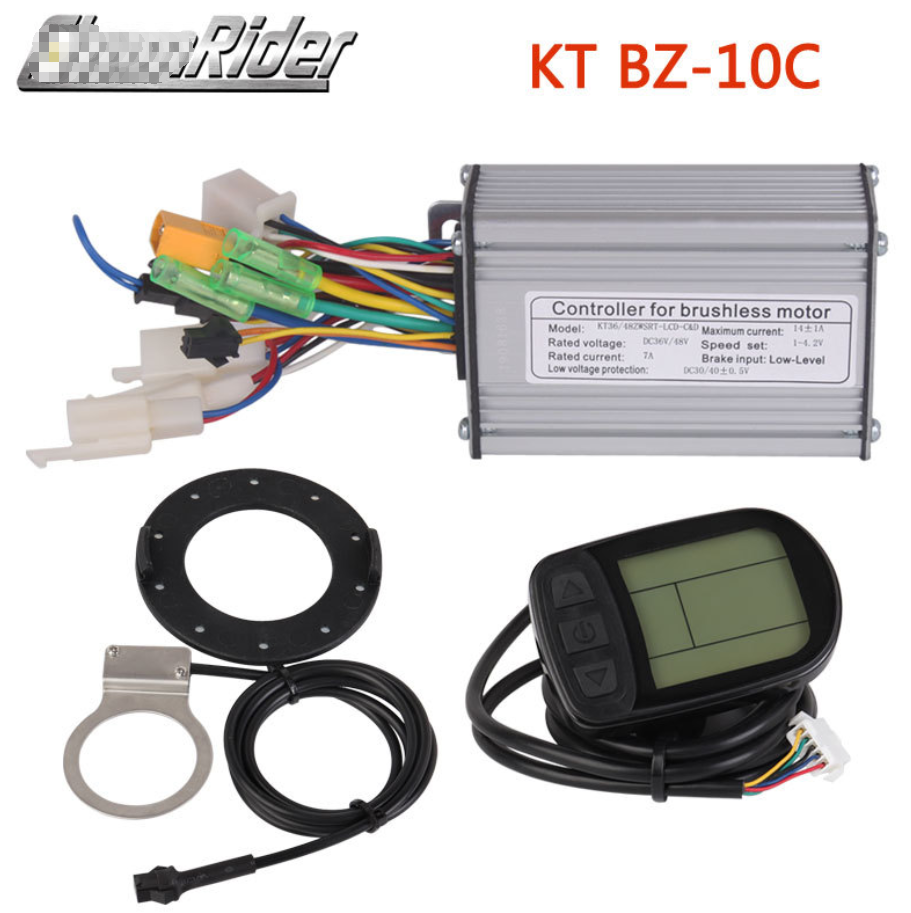

KT BZ-4(8)KT V12LKT D12LKT BZ-10C

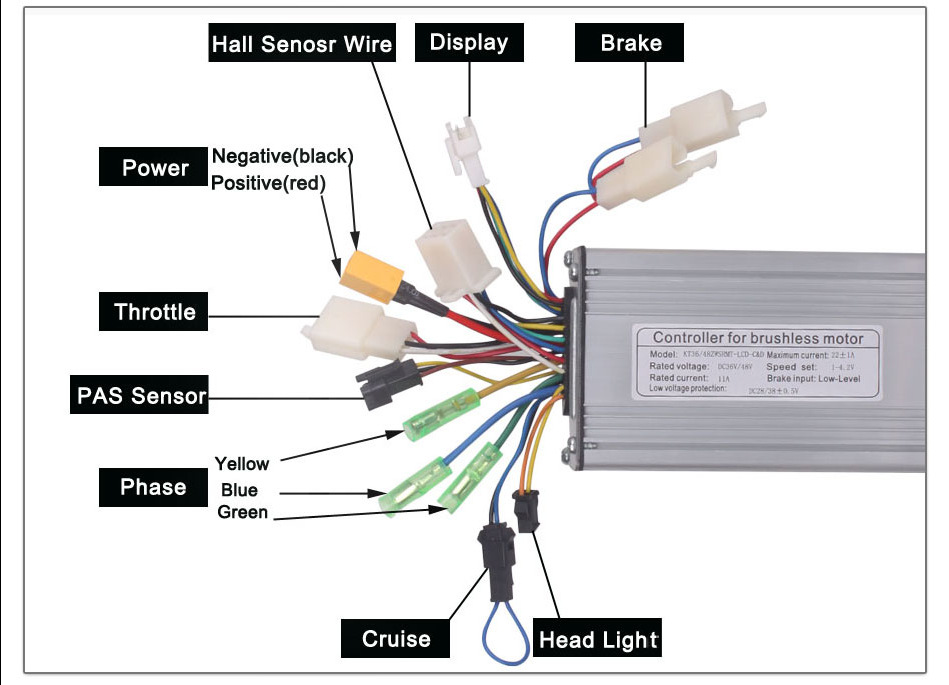

控制器接线分布图6

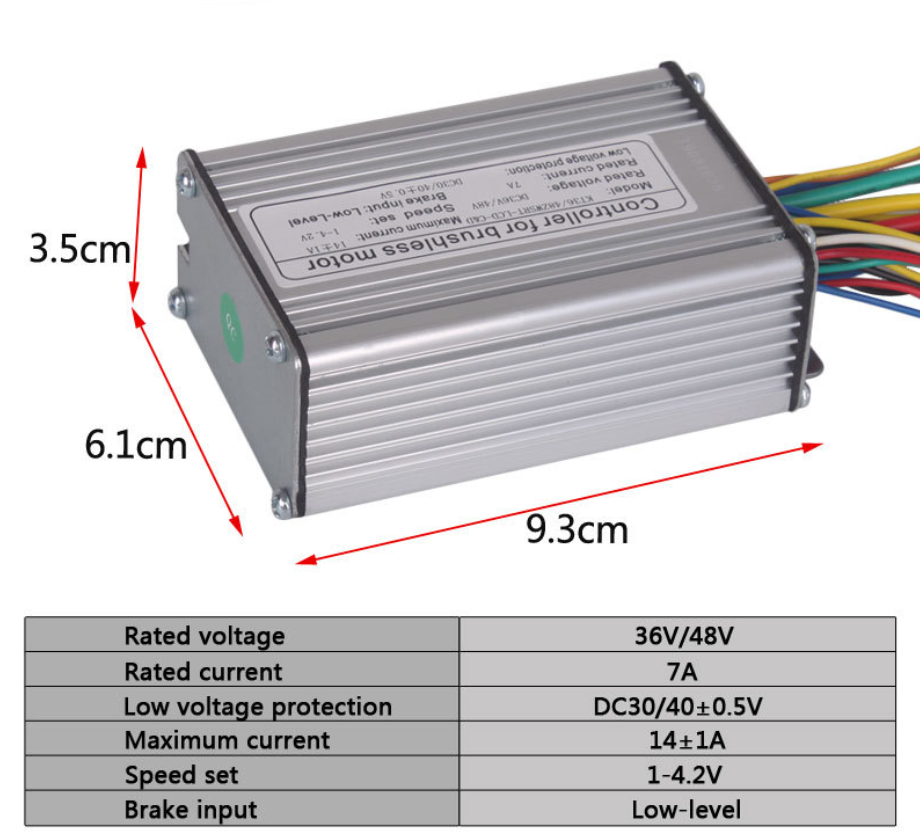

Rated voltage	36V	48V
Rated current	7A	7A
Low voltage protection	DC29±0.5V	DC39±0.5V
Maximum current	14±1A	14±1A
Speed set	1-4.2V	1-4.2V
Brake input	Low-level	Low-level

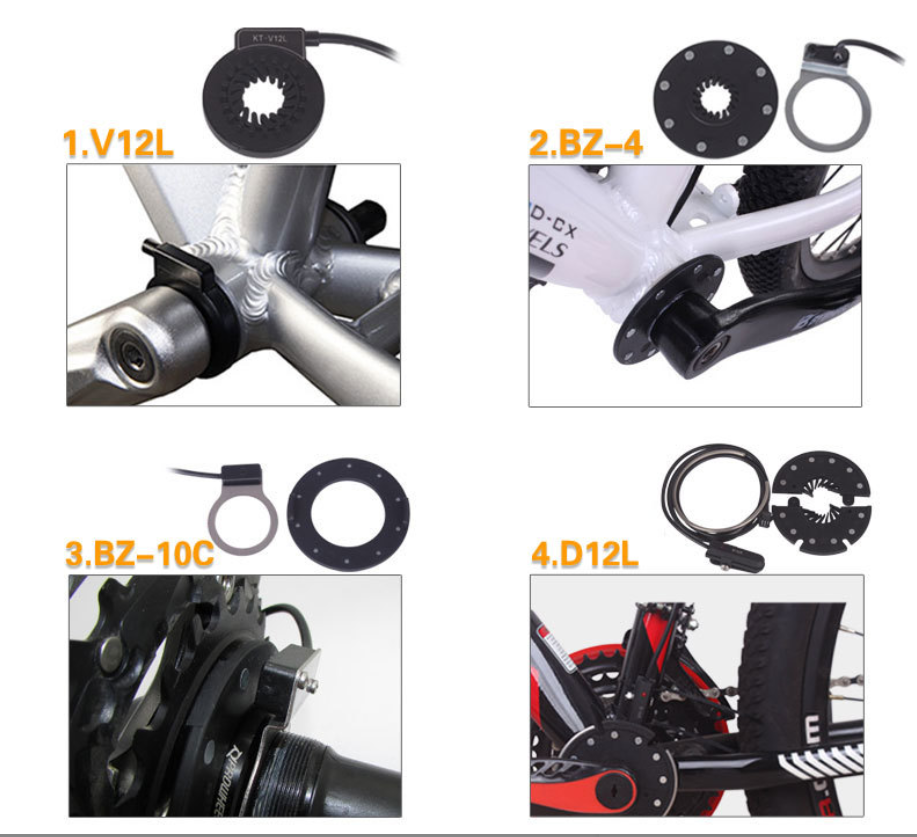

There are 4 options

1.V12L

2.BA-4

3.BZ-10C

4.D12L
