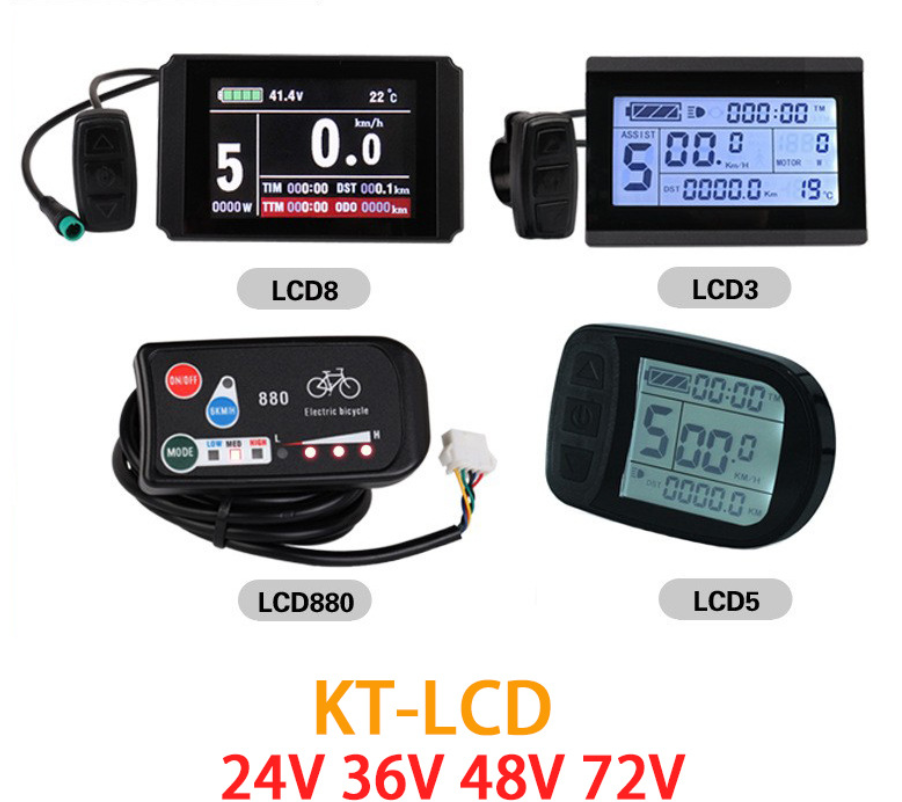

24V36V48V72V Ebike Hub Motor Control Panel LCD Display Meter
24V36V48V72V Ebike Hub Motor Control Panel LCD Display Meter
Couldn't load pickup availability

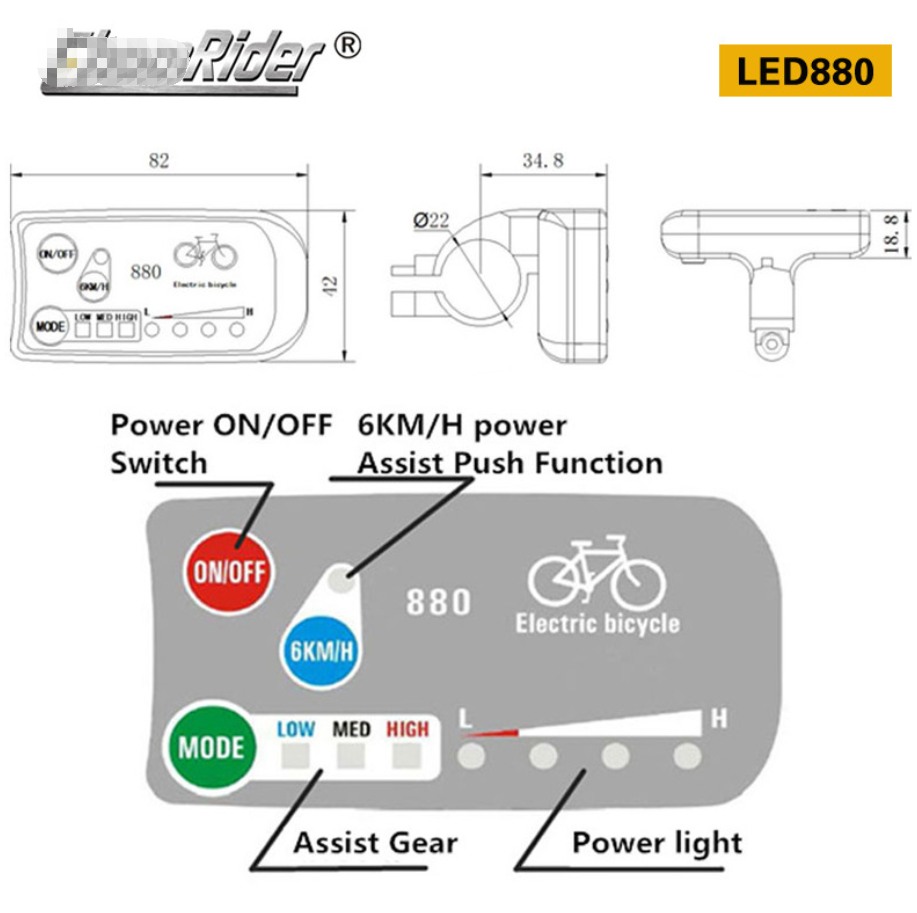

| Features： |
| 1. ON/OFF function of power supply, it will automatically shut down after standby for 5 minutes; |
|
2. Four-bit intelligent power display can be a true reflection of the state of battery charge to guarantee the riding distance; |
|
3. High, middle and low gears of imitation torque boost of switch gears and gear indicator display, with gear memory function, power on can automatically recover the gear state during power off; |
|
4. 6Km/h boost function, and the boost light is blinking during boost, it can be used by the rider during driving a vehicle, and the vehicle driving will be easy; |
|
5. Under-voltage indication function, when the battery is in under-voltage, the under-voltage indicator flashes; |
|
6. The adoption of five- line of digital communication is with a self-setting function of versatile parameters, users can adjust the settings such as motor parameters, velocity parameters, speed parameter according to different models; |
|
7. The instrument is with good interchangeability, and different instruments can directly exchange with each other and copy the data parameters; |
| 8. The optional power supply voltage is 24V, 36V and 48V; |
| 9. Black housing; |

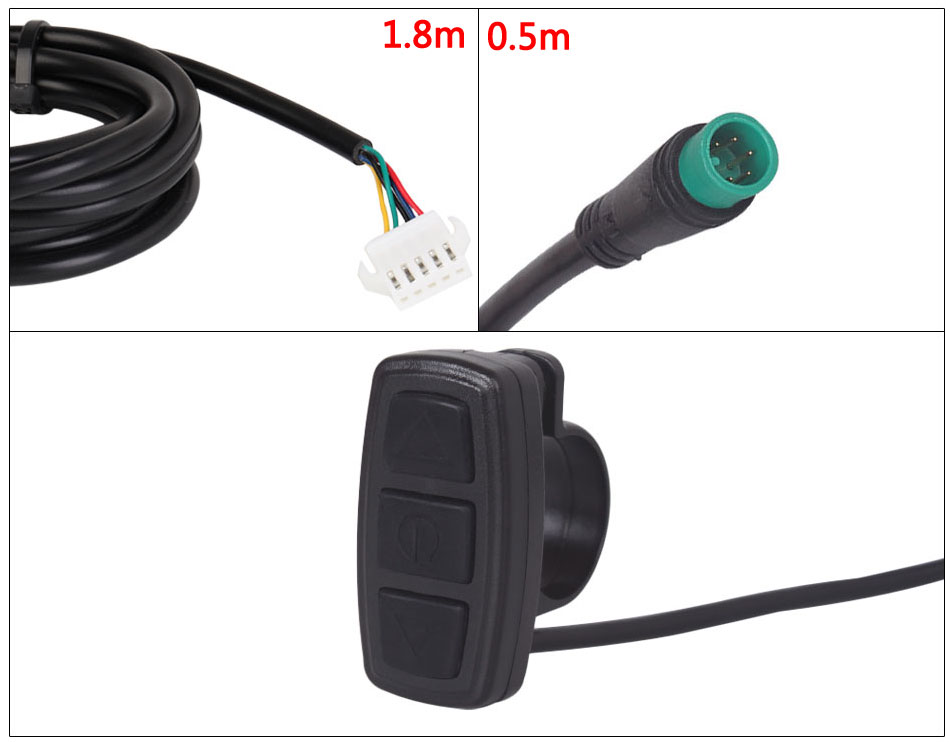

Cable Length：1.8m

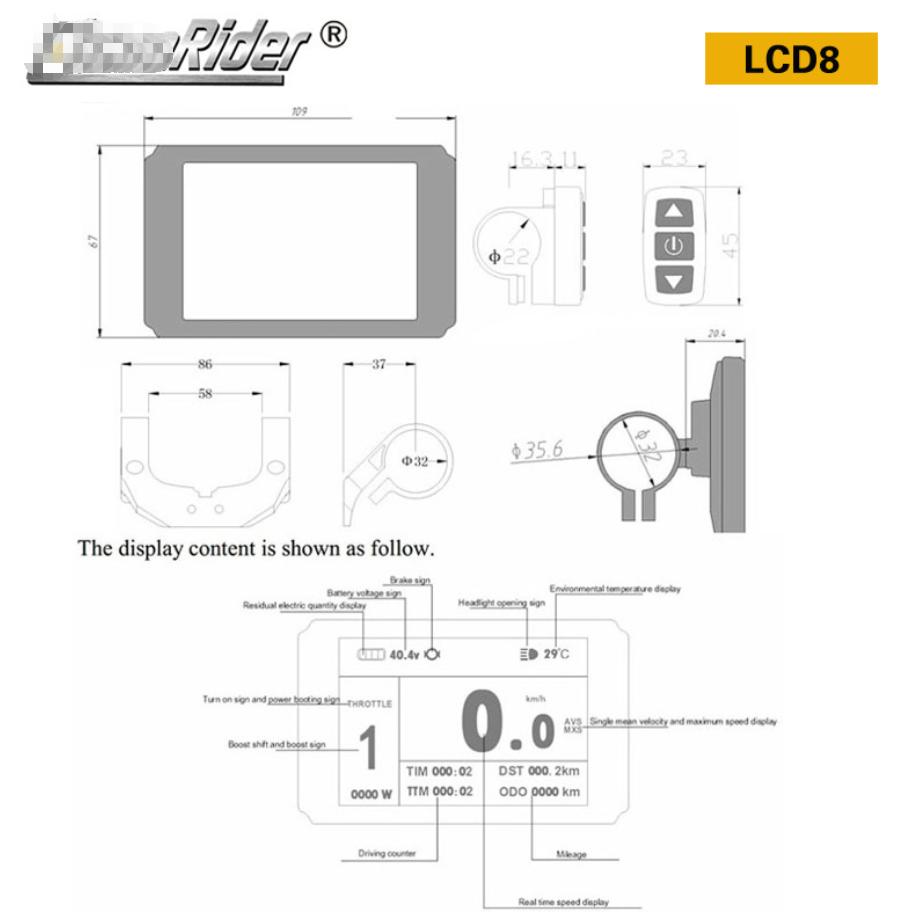

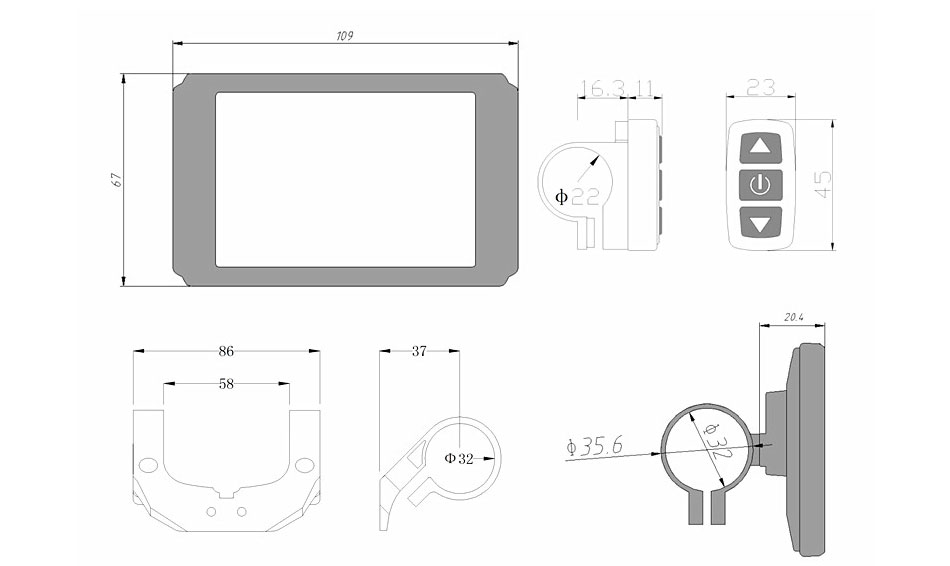

| Features： |
|

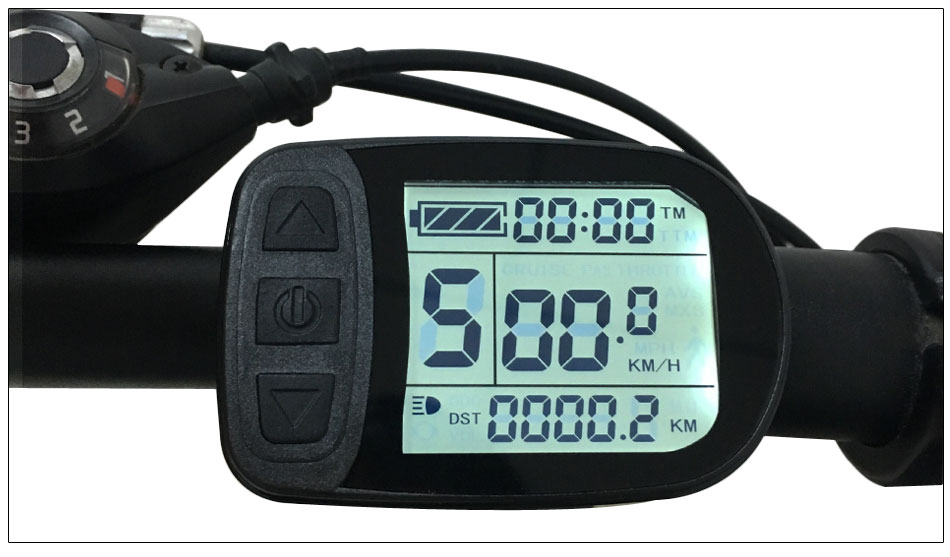

1. Data display：it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, battery voltage and charge status, brake status and other cycling parameters; |
|
2. Intelligent power：a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage; |
|
3. Stalls setting：multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on; |
|
4. Parameter setting：with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ; |
|
5. Data view：Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding; |
|
6. Vehicle boosting：With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy; |
|
7. Cruise and constant speed：With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed; |
|
8. Night driving：With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night; |
| 9. Password setting：With three-bit of power-on password setting; |
|
10. Automatically prompt：For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle; |
|
11. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly; |
| 12. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible; |
| 13. Black housing; |
Cable Length：1.8m

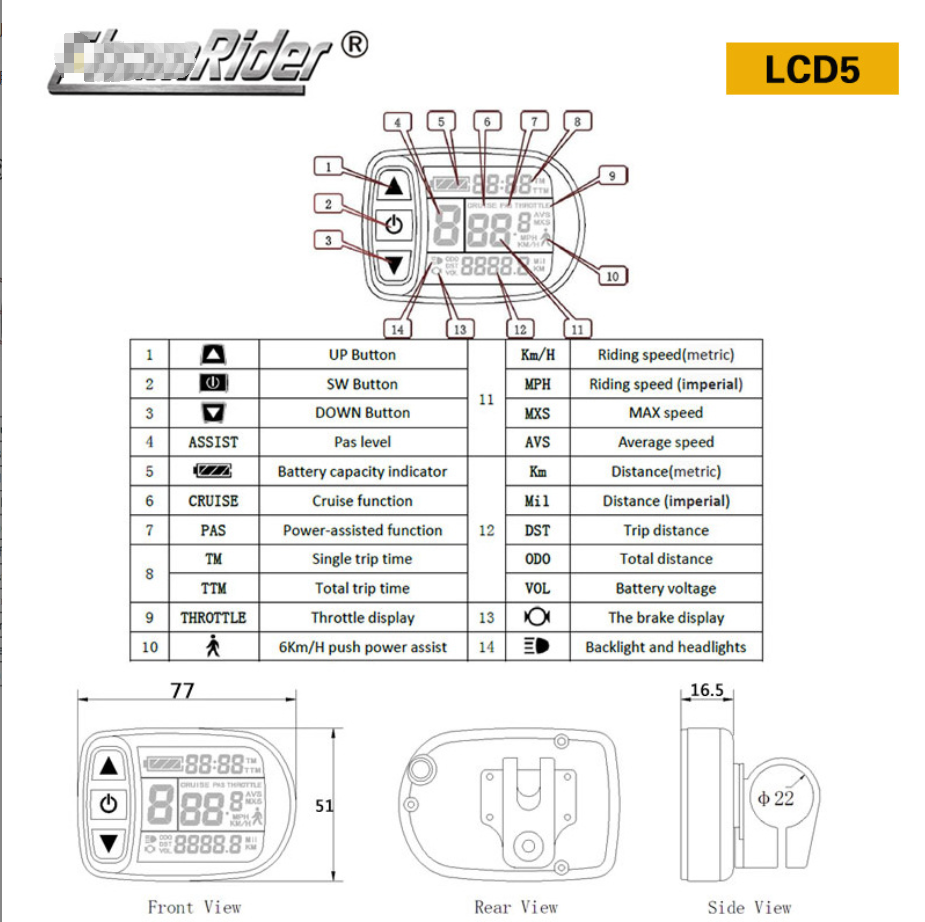

| Features： |
|

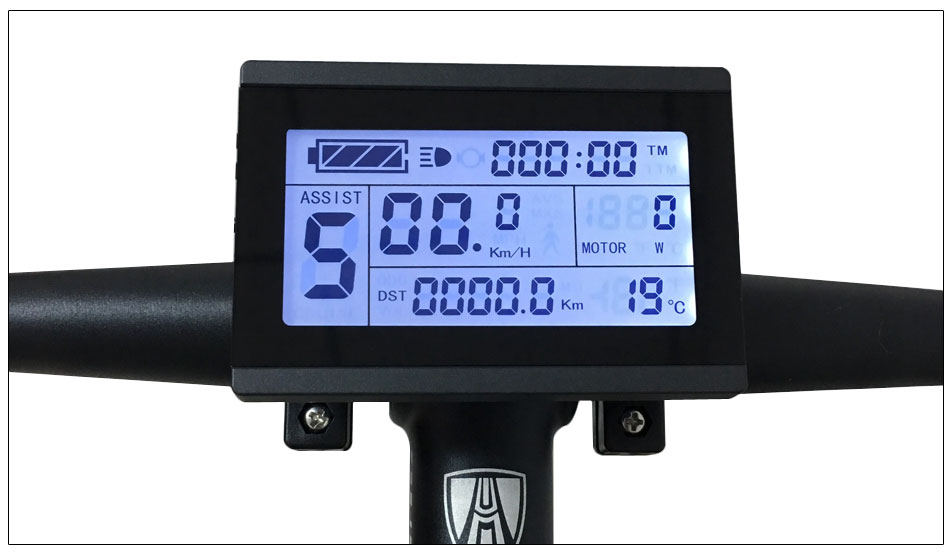

1. Data display：it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters; |
|
2. Intelligent power：a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage; |
|
3. Stalls setting：multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on; |
|
4. Parameter setting：with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ; |
|
5. Data view：Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding; |
|
6. Vehicle boosting：With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy; |
|
7. Cruise and constant speed：With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed; |
|
8. Night driving：With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night; |
| 9. Password setting：With three-bit of power-on password setting; |
|
10. Automatically prompt：For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection; |
|
11. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly; |
|

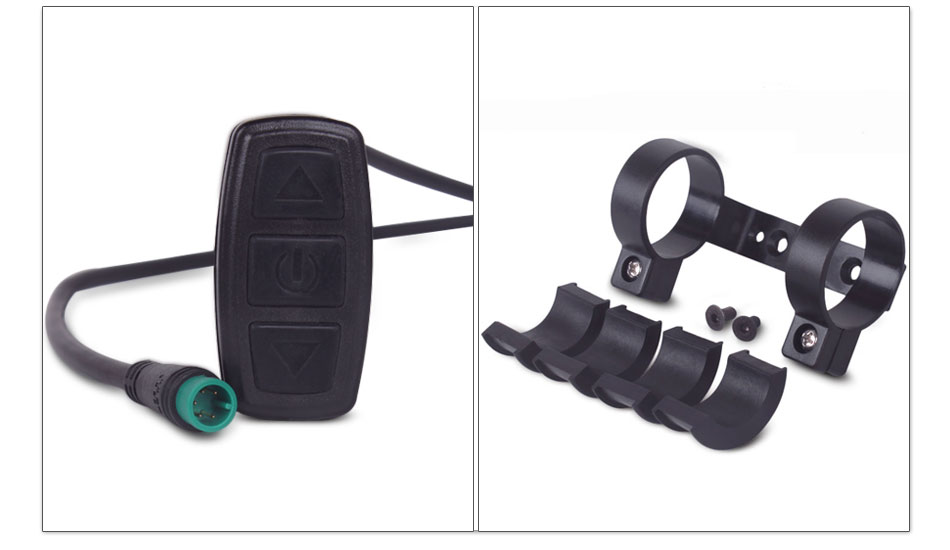

12. Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient; |
| 13. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible; |

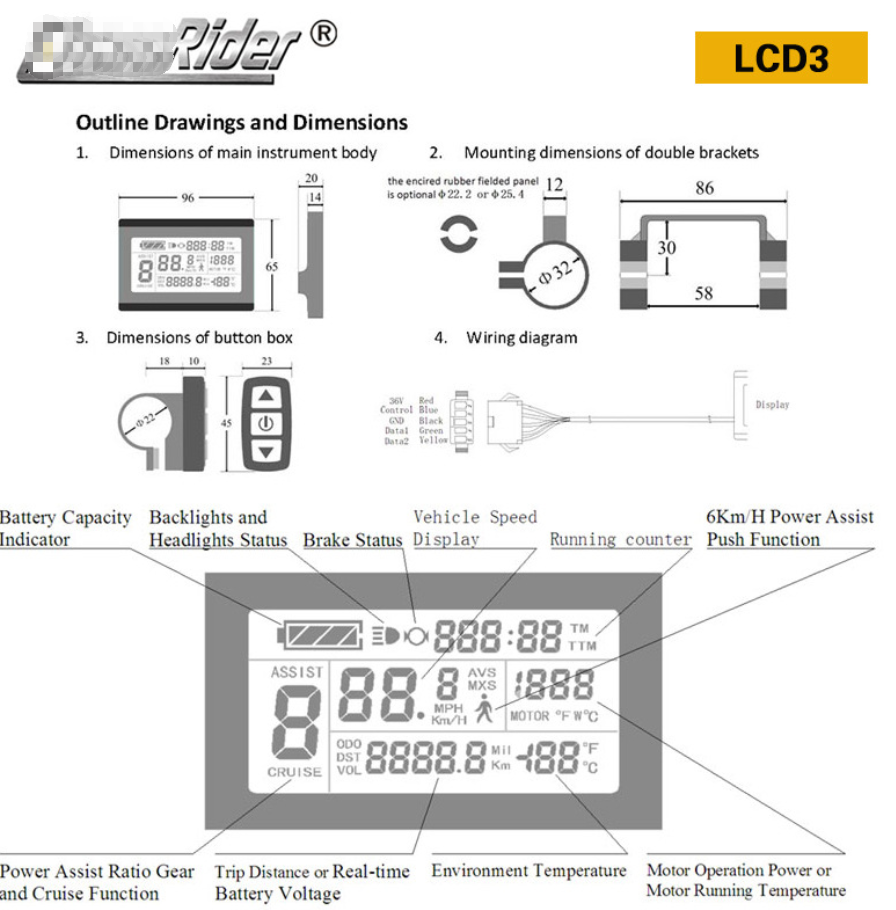

Features：

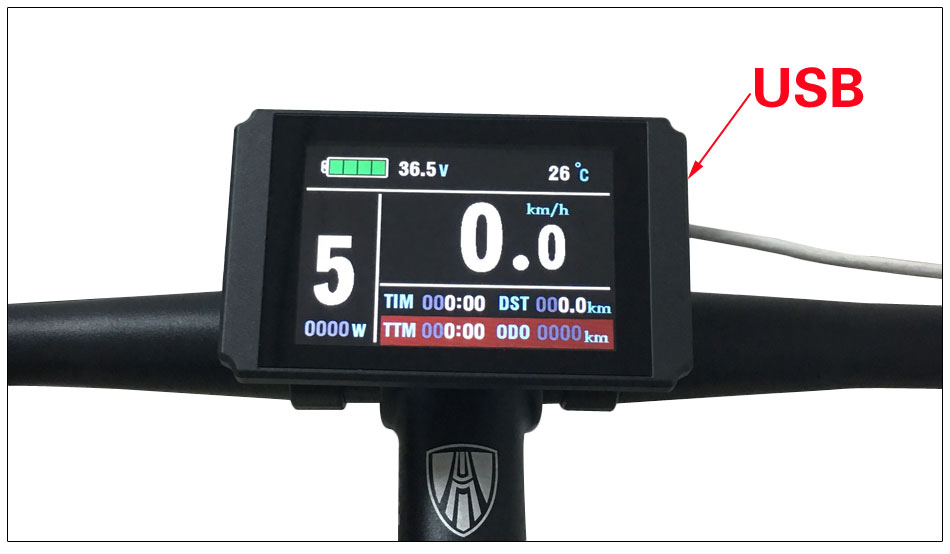

1. Data display：it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;
2. Intelligent power：a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;
3. Stalls setting：multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;
4. Parameter setting：with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;
5. Data view：Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;
6. Vehicle boosting：With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
7. Cadence function：In the assistance mode, the display will show the pedal’s Revolutions Per Minute (RPM);
8. Cruise and constant speed：With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;
9. Night driving：With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;
10. Password setting：With three-bit of power-on password setting;
11. Automatically prompt：For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;
12. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;
13. Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;
14. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;
