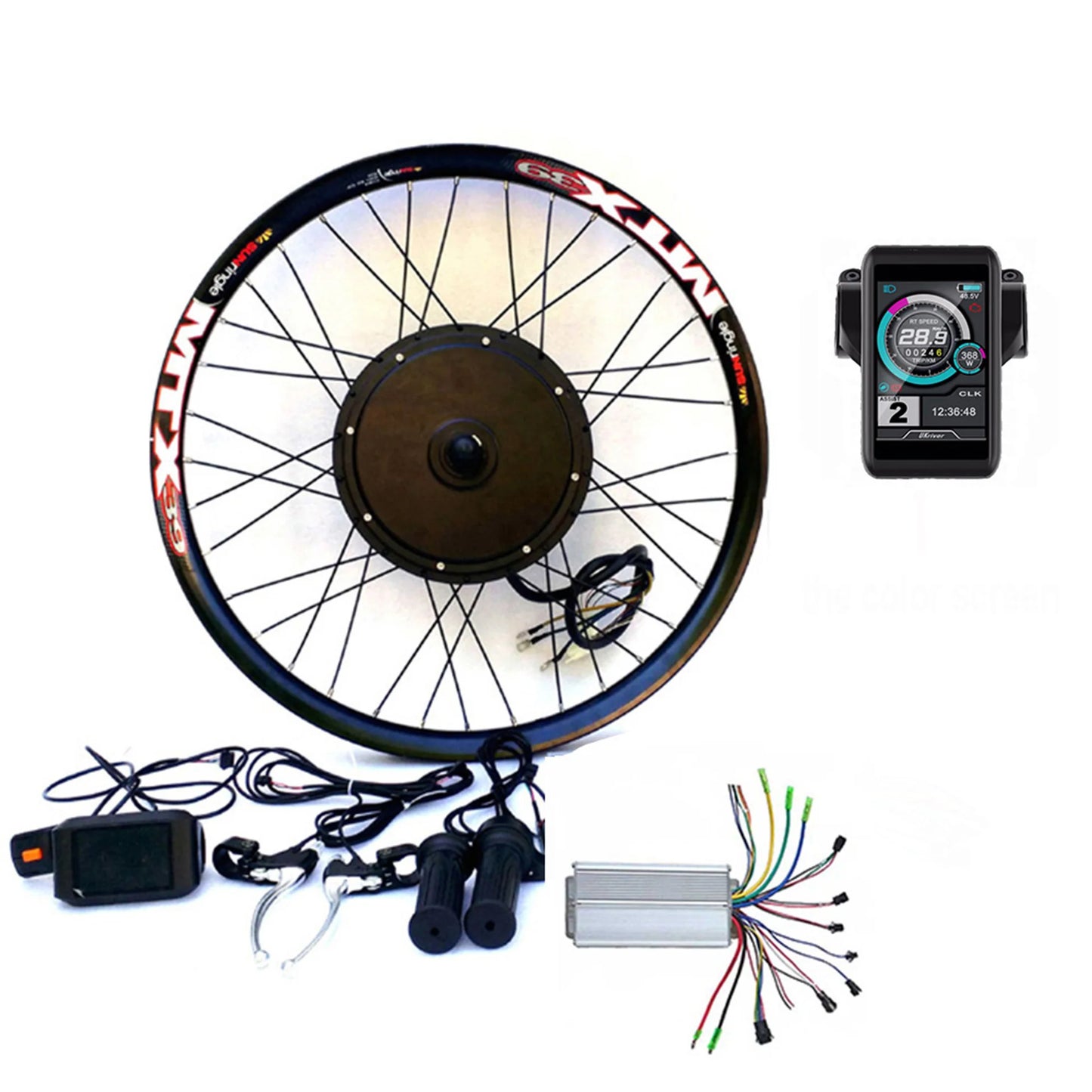

1500W 48V Electric Bike Conversion Kit with Hub Motor, MTX Rim, and TFT Display for Mountain Bikes

Key Features:

Powerful 1500W Hub Motor: Brushless, gearless design with 180 copper windings and high-quality magnets for smooth, efficient performance.

High Speed: Reaches 580 RPM, delivering 55–58 km/h (35 mph) with a 26-inch wheel.

Strong Climbing Ability: Max torque of 50 N·M for excellent hill-climbing performance.

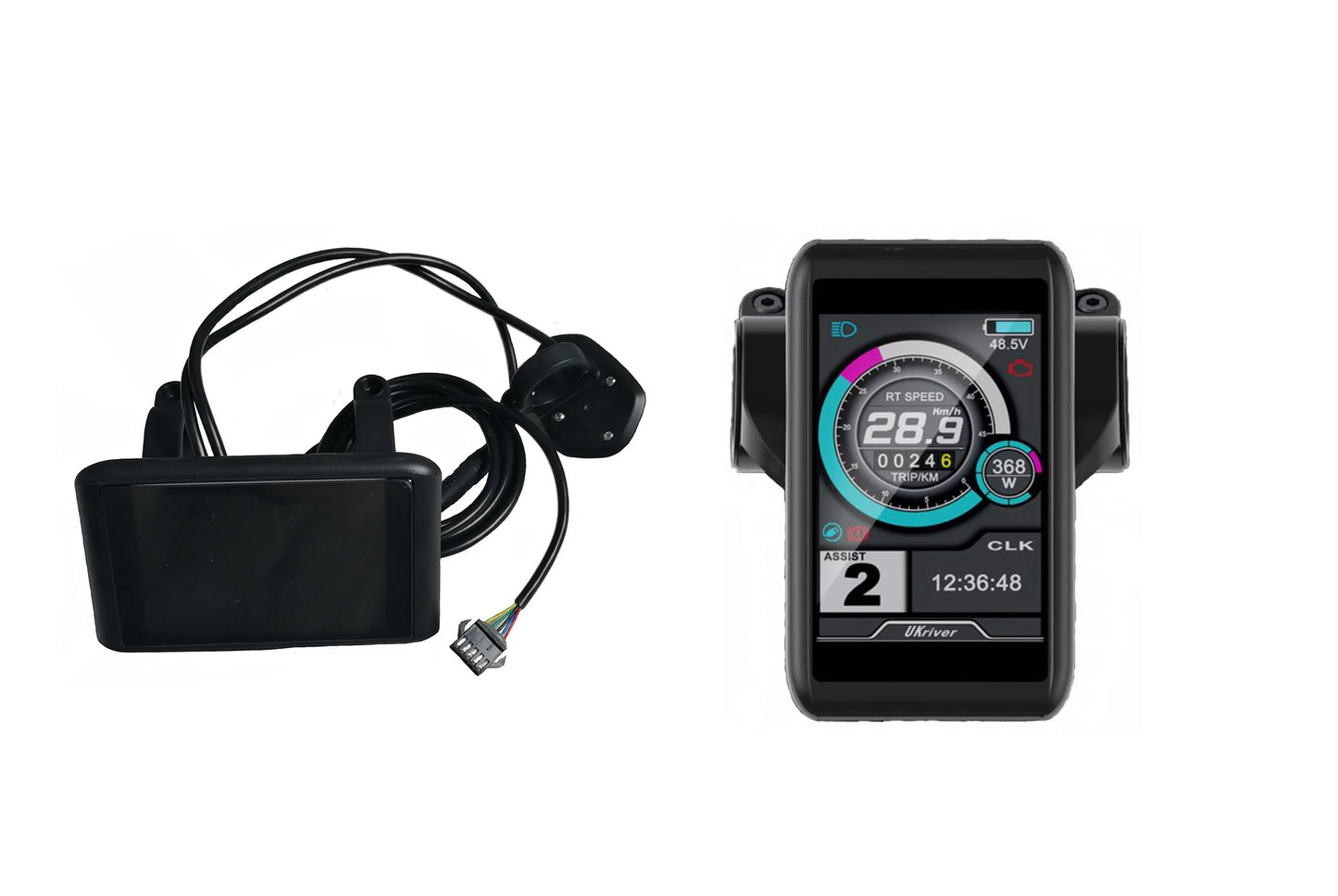

Premium UKC1 TFT Display: 3.5" high-contrast color screen shows battery level, speed, mileage, gear, and error diagnostics.

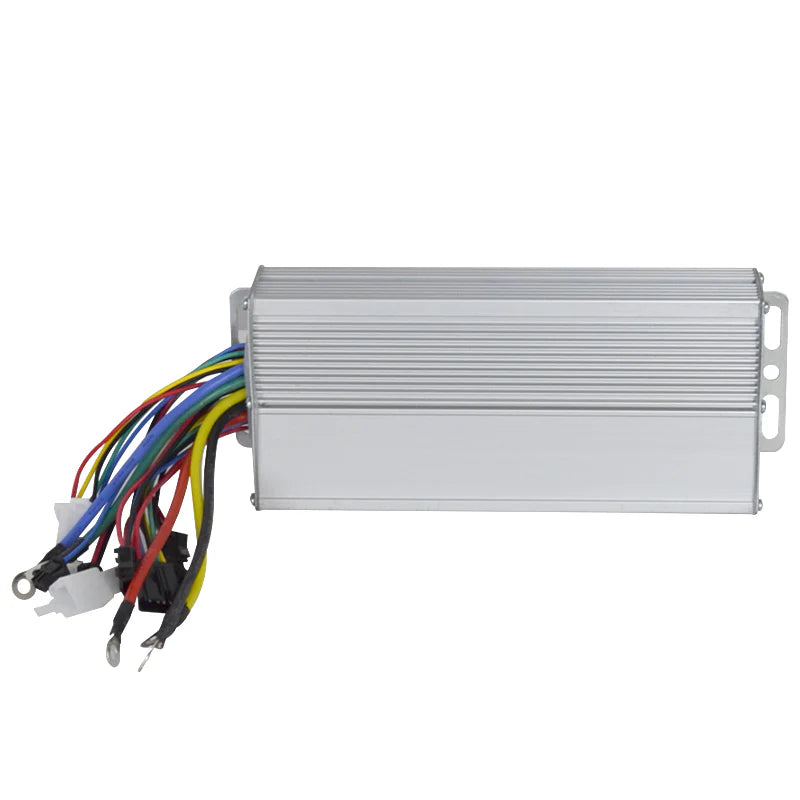

Advanced 48V35A Sine-Wave Controller: Features 12 MOSFET tubes for stable power delivery, improved battery life, cruise control, and low energy consumption.

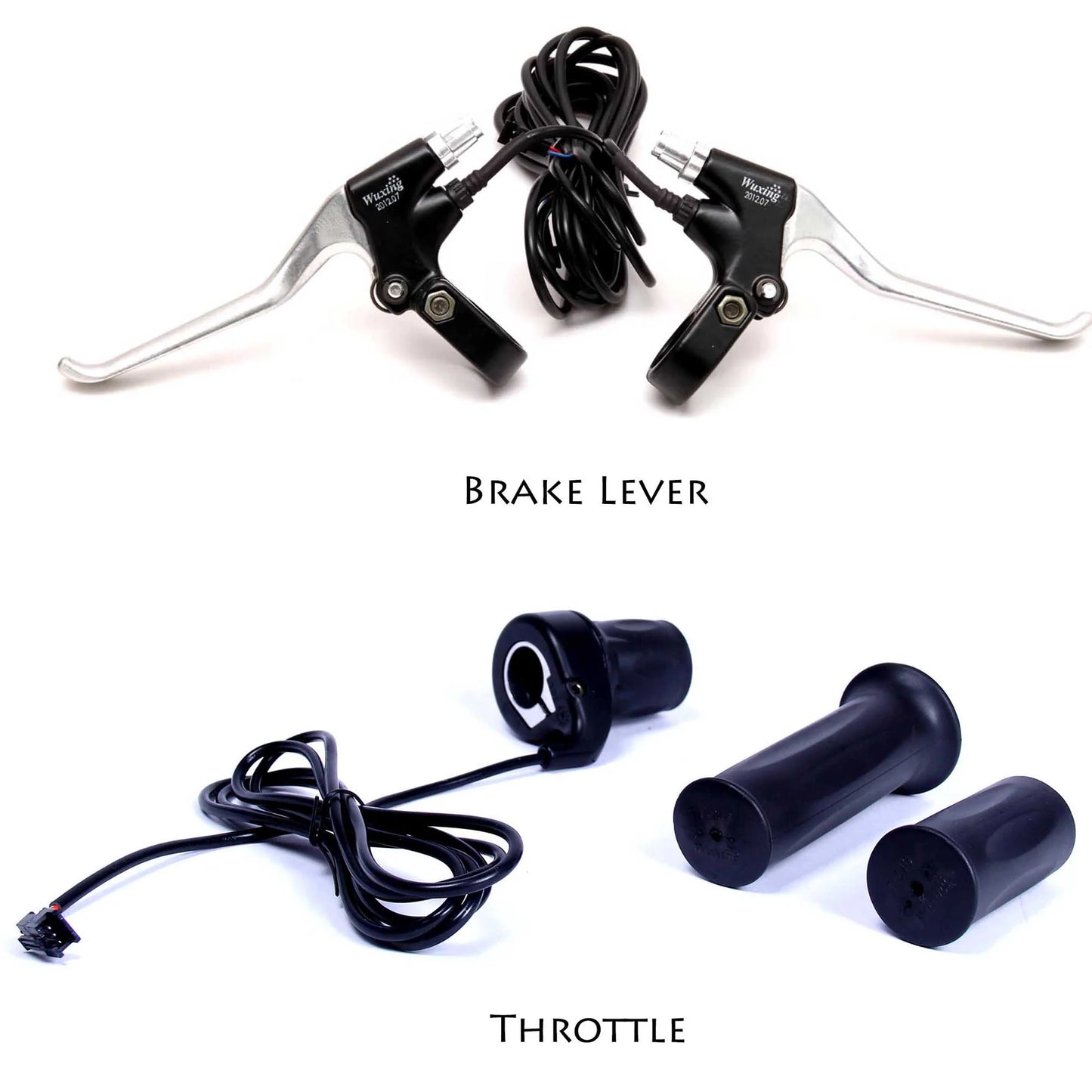

Safety Braking: Twist brake lever with motor cutoff and stainless steel disc brake for reliable stopping power.

Durable MTX Sun Ringle Rim: Sturdy 38.9mm wide rim paired with 12G spokes (2.6mm thick) for enhanced strength.

Specifications:

Motor: 48V 1500W rear hub motor (135mm width).

Tire Compatibility: Fits standard 26-inch wheels (rim & tire included).

Recommended Battery: 48V 20Ah–21Ah for optimal performance.

Ideal for upgrading mountain bikes into high-performance e-bikes with speed, power, and reliability

Front Wheel Dropout

Rear Wheel Dropout

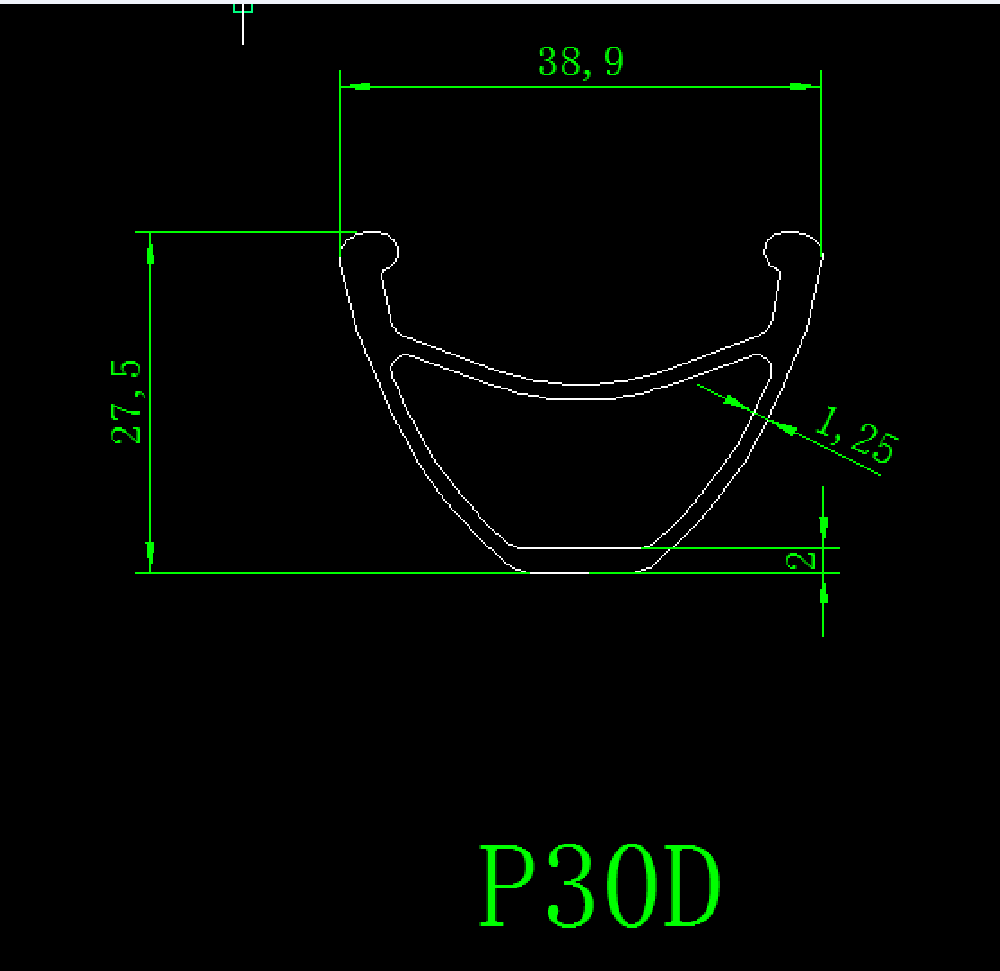

Width of the Rim
